Material Decontamination

All ranges

MD-Ci

Decontamination Chamber Integrated MD-Ci

MD-C

Decontamination Chamber MD-C

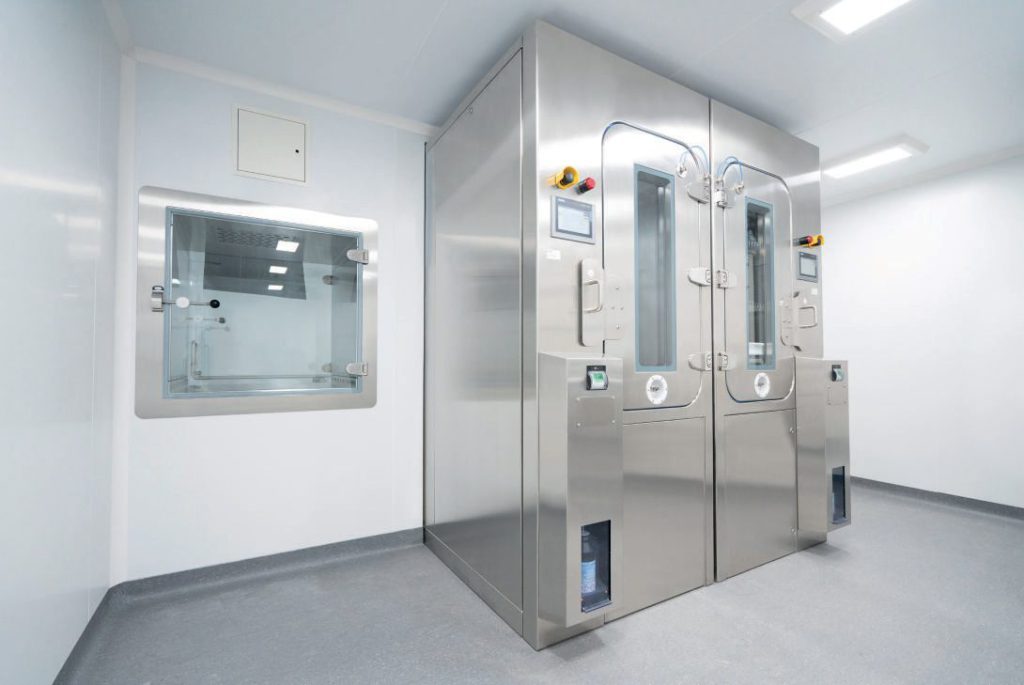

PBSC integrated decontamination hatch installed in a cleanroom

MD-Hi

Decontamination Hatch Integrated MD-Hi

MD-H

Decontamination Hatch MD-H

MD-Ci

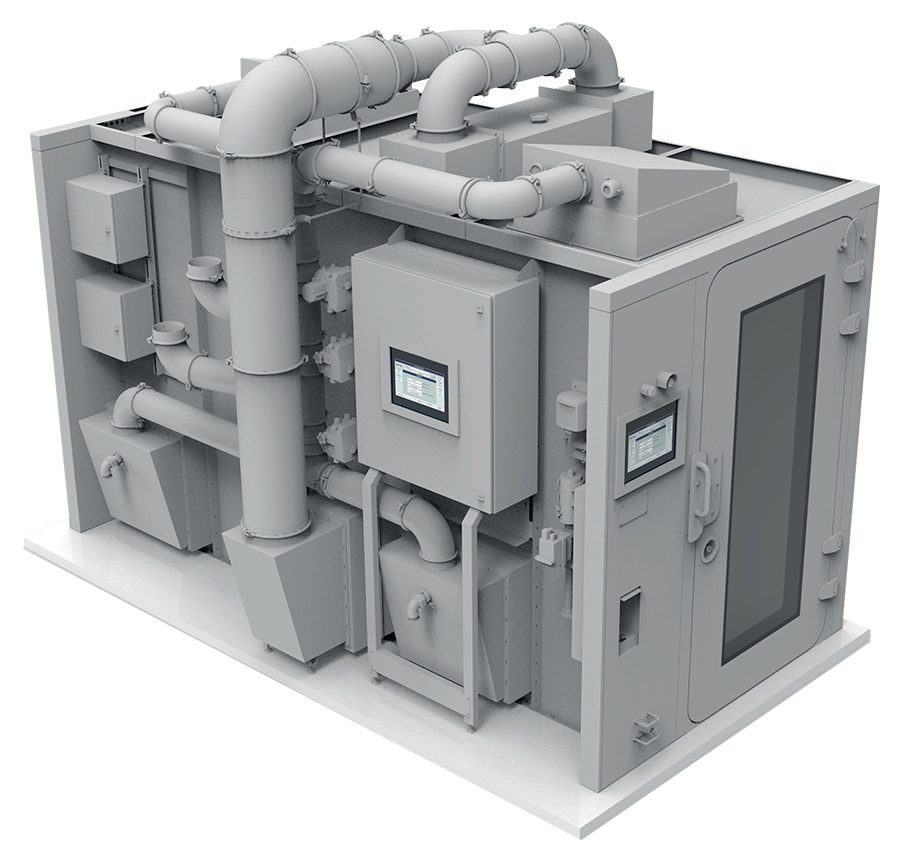

Decontamination Chamber Integrated MD-Ci

PBSC’s high-level Log6 surface disinfection chamber is a modular design, ideal for material production environments and equipment loads in cleanroom and high containment environments up to BSL4, with a fully integrated decontamination solution utilising market-leading H₂O₂ generator manufacturers ensuring regulatory compliance and consumable traceability.

The chamber is intuitive, allowing ease of use for facility operators.

Effective against a wide range of microorganisms and viruses, the HPV decon chamber provides a low heat decontamination solution for heat-sensitive items such as laptops and biologic preparations. The decontamination chamber is a crucial addition to a facility process philosophy for material transfer into or out of the critical environment.

The decontamination cycle is initiated via the colour touch screens on either side of the chamber, which provide operators with in-cycle data from the chamber and H₂O₂ generator.

With this integrated chamber, the hydrogen peroxide generator can be either integrated internally on the unit or remotely mounted in the building’s technical area. Both options have a remote bottle housing and printer mounted on the chamber. Custom integration to a multi-room decontamination system is available.

The chamber includes either an S7-1200 or S7-1500 PLC with Ethernet data communication.

Various chamber sizes with pneumatic seal doors are available, from 1m x 1m up to 3m x 5m (W x D).

Fast cycles from 45 minutes
Log6 decontamination
Data acquisition for 21 CFR Part 11 and Annex 11 compliance
Internal power sockets for electrical items during fumigation
H2O2 bottle housing
Flush Maglock with hidden proximity
Onboard printer
Colour Touch Screen
Large vision panel with flush glazing
Plug and play electrical spares
Flush threshold for wheeled access

Enquire Datasheet (PDF) ↑ Back to the range

MD-C

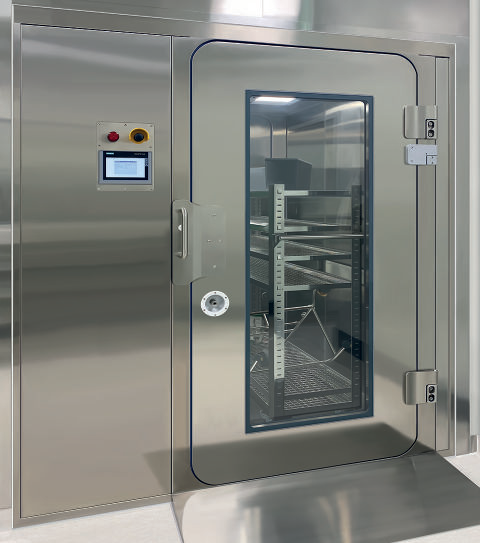

Decontamination Chamber MD-C

PBSC’s high-level Log6 surface disinfection chamber with a mobile generator is a freestanding modular unit ideal for material production and equipment loads in cleanroom and high containment environments up to BSL4.

The generator is mobile allowing it to be used on other equipment and room decontamination.

PBSC provides decontamination solutions from market leading H₂O₂ generator manufacturers ensuring regulatory compliance and consumable traceability. The chamber is intuitive allowing ease of use for facility operators.

The decontamination cycle is initiated via the colour touch screens, which are located on either side of the chamber, providing operators with in-cycle data from the chamber and H₂O₂ generator.

Effective against a wide range of microorganisms and viruses, the HPV disinfection chamber provides a low heat decontamination solution for heat-sensitive items such as laptops and biologic preparations. The chamber is a crucial addition to a facility’s process philosophy for material transfer into or out of the critical environment.

The chamber includes either an S7-1200 or S7-1500 PLC with Ethernet data communication.

Various chamber sizes with pneumatic seal doors are available, from 1m x 1m up to 3m x 5m (W x D).

Fast cycles from 45 minutes
Log6 decontamination
Siemens S1200 or S1500 PLC
Flush Maglock
Colour Touch Screen
Stainless-steel hinges with concealed air supply
Tacho monitored fans
Large vision panel, double glazed
Flush threshold allowing easy wheeled access
Full service support contracts available

Enquire Datasheet (PDF) ↑ Back to the range

MD-Hi

Decontamination Hatch Integrated MD-Hi

PBSC’s high-level Log6 surface disinfection hatch is a freestanding unit, ideal for material production and equipment loads in Bio-Medical, Biopharma, and High Containment environments.

The fully integrated HPV solution provides fully integrated decontamination solutions from market-leading H₂O₂ generator manufacturers to ensure regulatory compliance and consumable traceability.

The decontamination cycle is initiated via the colour touch screens available on each side of the hatch, providing operators with in-cycle data from the hatch and VHP™ generator.

PBSC’s integrated hatch gives a low heat decontamination solution for heat-sensitive items such as laptops or biologic preparations. Effective against a wide range of microorganisms and viruses, the decontamination hatch is a crucial addition to a facility’s process philosophy for material transfer into or out of critical environments.

On the MD-Hi model, the hydrogen peroxide generator is integrated on the hatch or in the building’s technical area. Both options have a bottle housing and printer mounted on the chamber. Custom integration to a multi-room decontamination system is available.

The hatch includes an S7-1200 or S7-1500 PLC with Ethernet data communication, which monitors and records all critical parameters of each cycle.

Various hatch sizes with pneumatic seal doors are available, from 2’ x 4’ up to 4’ x 5’ (W x H).

Decontamination cycle times from 30 minutes
Log6 decontamination
Data integrity compliance
Full-service support contracts available to suit GMP and Life Science facilities

Enquire Datasheet (PDF) ↑ Back to the range

MD-H

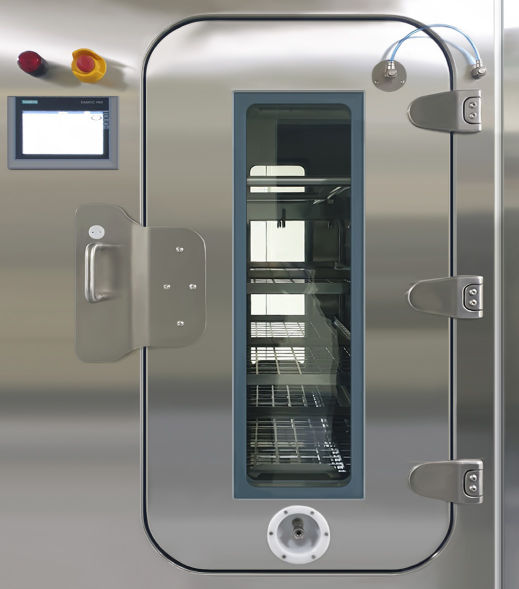

Decontamination Hatch MD-H

PBSC’s high-level Log6 surface disinfection hatch is a freestanding unit, ideal in Bio-Medical, Bio-Pharma, and high containment applications.

PBSC provides decontamination solutions from market-leading H₂O₂ generator manufacturers to ensure regulatory compliance and consumable traceability. Having a mobile decontamination generator allows use on other equipment and for room decontamination.

The hatch is designed to be intuitive allowing ease of use for facility operators.

The decontamination cycle is initiated via the colour touch screens on either side of the hatch, providing operators with in-cycle data from the hatch and VHP™ generator.

Effective against a wide range of micro-organisms and viruses, the HPV hatch provides a low heat decontamination solution for heat-sensitive items such as laptops, or biologic preparations. The decontamination hatch is a crucial addition to a facility’s process philosophy for material transfer either into or out of the critical environment.

The hatch includes either an S7-1200 or S7-1500 PLC with Ethernet data communication, which monitors and records all critical parameters of each cycle.

Various hatch sizes with pneumatic seal doors are available, from 2’ x 4’ up to 4’ x 5’ (W x H).

Decontamination cycle times from 30 minutes
Log6 decontamination
Siemens S1200 or S1500 PLC
7", 12" or 15" Comfort Touch Screens
Data acquisition for 21 CFR Part 11 and Annex 11 compliance
Standard sizes: 600 x 1200 x 1100mm or 900 x 1200 x 1100mm

Enquire Datasheet (PDF) ↑ Back to the range

↑
