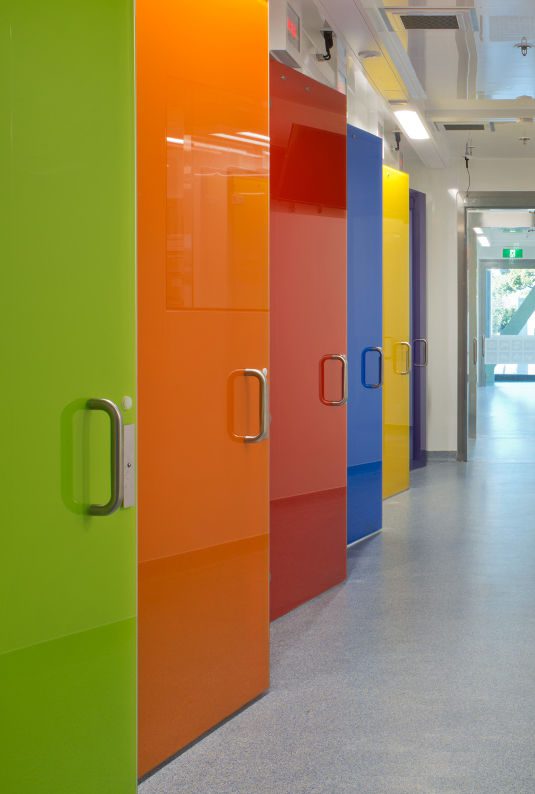

Glass Door AR-Dg

PBSC’s cleanroom glass doors, also referred to as laboratory doors, hospital doors, healthcare doors, NHS doors, and medical doors create a showpiece appearance to any facility and provide ideal functionality.

The cleanroom doors from PBSC play a crucial role in maintaining the integrity of controlled environments by preventing the entry of contaminants and are designed to meet stringent cleanliness and hygiene standards required in industries such as pharmaceuticals, biotechnology, electronics manufacturing, and healthcare.

Available with PBSC’s unique concealed closer system. Uniquely developed to include a single closer arm in solid stainless steel and a closer sealed into the door frame. Which in turn eliminates the ledges and the difficult-to-clean arms.

• Full wrap-around shroud in stainless or powder-coated options
• 10mm frameless tempered glass door leaf
• Solid stainless-steel hinge with 170° opening capability
• Custom frame sizes for specific wall thicknesses
• Flush maglock in frame with maximum clear opening
• Concealed or surface-mounted door closer options

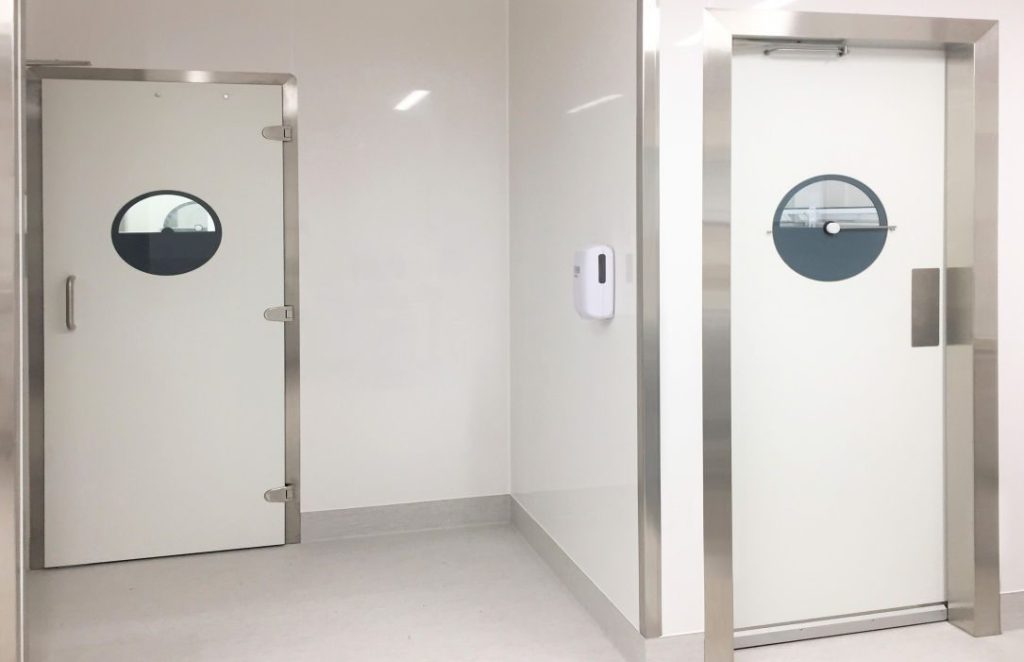

Phenolic Resin Door AR-Dp

PBSC’s Phenolic Resin Door sets (also known as Hospital Doors, Cleanroom Doors, NHS Doors, and Chemical Grade Doors) are expertly designed for demanding environments such as laboratories, cleanrooms, and corrosive settings.

Engineered with a solid core of chemical-grade phenolic resin, these doors offer superior durability and resistance to chemicals and cleaning agents. Unlike metal doors, they feature a seamless, cavity-free construction that prevents contamination ingress, ensuring optimal hygiene standards.

• Excellent resistance to corrosive chemicals
• High impact resistance
• Solid core door leaf
• Stainless-steel hinges opening to 170°
• Flush glazed vision panels
• Flush maglock in frame
• Concealed closer system available

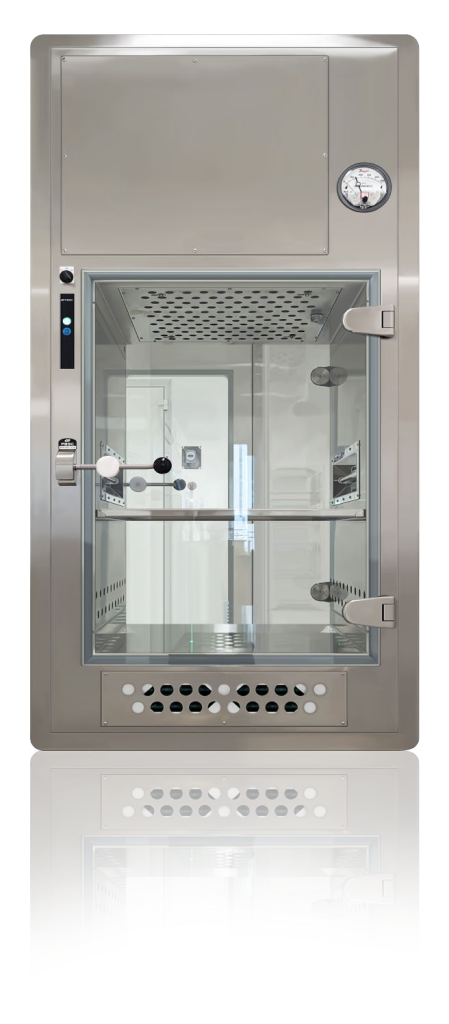

Fan Filter Pass Through Hatch – AR-FFU

A fan filter pass through hatch is a specialised cleanroom component designed to facilitate the safe transfer of materials between areas of differing cleanliness standards.

By utilising fan filter pass through hatches, facilities can ensure that the transfer of materials between cleanroom areas is conducted safely and efficiently, maintaining high standards of cleanliness and contamination control.

PBSC’s Fan Filter pass through hatch is designed to provide rapid air changes and fast clean-up/recovery times to reduce the waiting time when transferring goods between different room grades. The system is designed to work without any connection to the building’s HVAC system and utilise the air from the adjacent rooms, reducing the costs of HVAC systems and making it ideal for refurbishments.

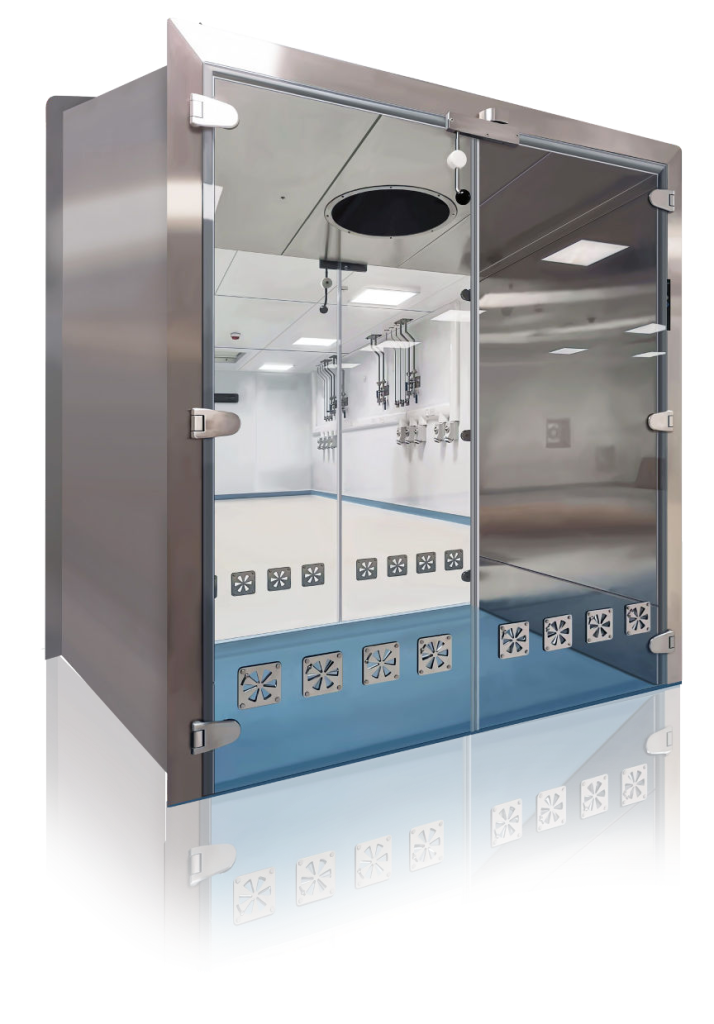

Floor / Trolley Pass Through Hatch AR-Ht

PBSC’s cleanroom trolley pass-through hatch, also known as a floor mounted hatch, pass box, pass chamber, or pass through is engineered for the secure and efficient transfer of trolleys and large equipment between different cleanroom and controlled environments.

Being one of the best on the market, constructed from high-quality stainless steel, the hatch features smooth surfaces for easy cleaning, an interlock system for contamination control, and customisable options to fit your facility’s specific needs.

Ideal for cleanrooms, laboratories, and hospitals, the trolley pass through hatch ensures that large items can be moved safely and efficiently without compromising environmental integrity.

Designed with a larger opening to accommodate trolleys, carts, or large equipment, fixed directly to the finished flooring, providing a clean and uninterrupted floor through the hatch.

• Robust mechanical interlock as standard
• Stainless steel or phenolic resin construction
• Minimal visible fixings
• Robust PBSC cast stainless-steel hinge assemblies
• Toughened glass door leafs
• Easy clean surfaces
• Frameless glass door leaf providing maximum visibility
• Reduces cross contamination

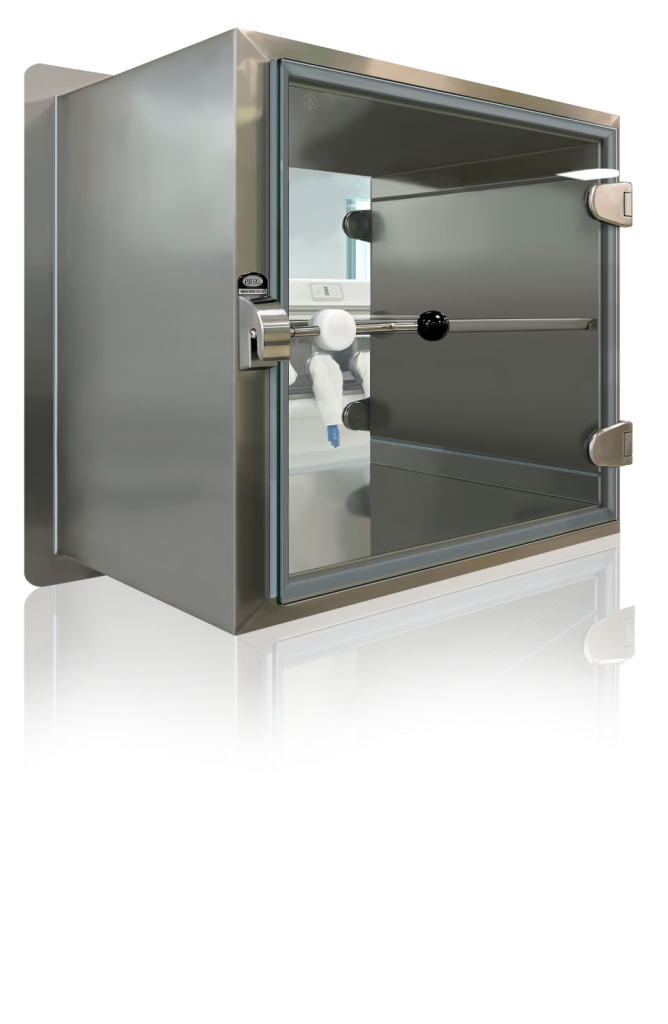

Wall Mounted Pass Through Hatch AR-H

PBSC’s transfer hatches, also known as a pass box, pass chamber, or pass through, are among the best on the market.

These hatches help reduce the risk of physical movement or transfer of harmful bacteria and pressure loss when transferring equipment between different classification areas, within cleanrooms, or in controlled environments.

The hatches from PBSC are designed for easy cleaning and maintenance, making them great for passing products, equipment, or even paperwork between sterile and non-sterile areas while preserving the integrity of each environment.

Effective sealing is crucial to prevent the exchange of air and contaminants between the two environments connected by the pass through hatch. PBSC’s interlocking mechanism ensures an airtight seal when the door is closed.

• Robust mechanical interlock (standard)
• Stainless-steel or phenolic resin construction
• Minimal visible fixings
• Cast stainless steel hinge assemblies
• Toughened glass door leaves
• Easy-clean surfaces

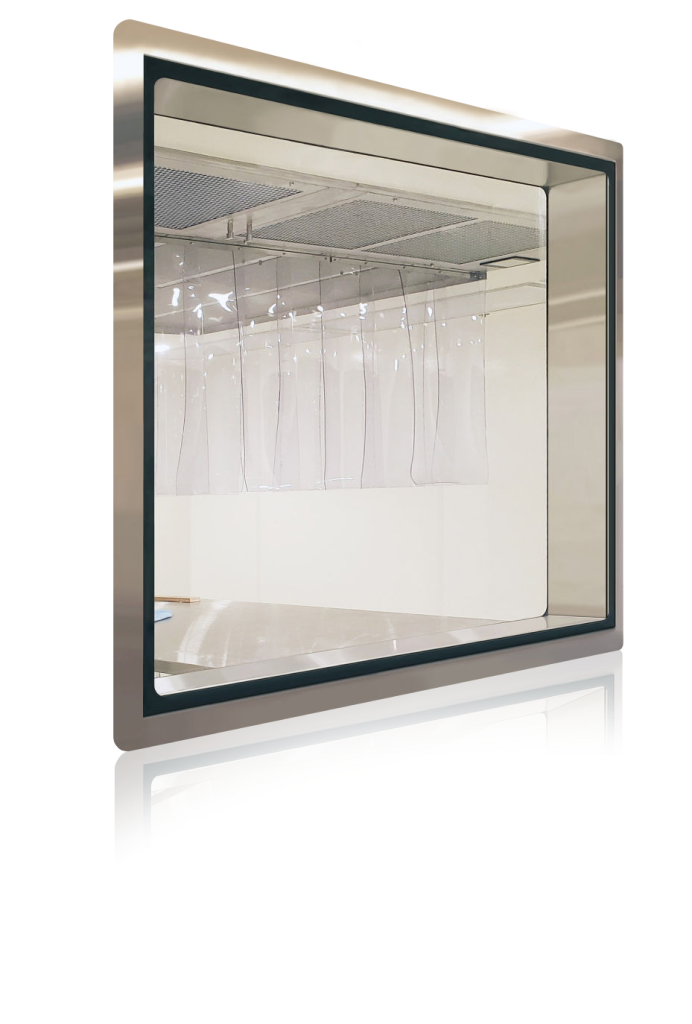

Double Glazed Vision Panel AR-V

A cleanroom vision panel, also known as a cleanroom observation window or viewport, is a specialized component designed for cleanroom environments.

It allows occupants or observers to visually inspect processes, equipment, or personnel inside the cleanroom without compromising the controlled environment.

PBSC’s standard double-glazed cleanroom vision panel provides a flush-glazed finish within a polished stainless-steel architrave.

With many of PBSC’s engineered products, the glazed screen has no visible fixings to either side, aiding attention to detail within cleanroom technology.

• Flush glazed vision panels to both sides
• Overlapping flanges to both sides of the opening
• Screen printed borders, bonded to the glass
• Customisation to fit wall thickness

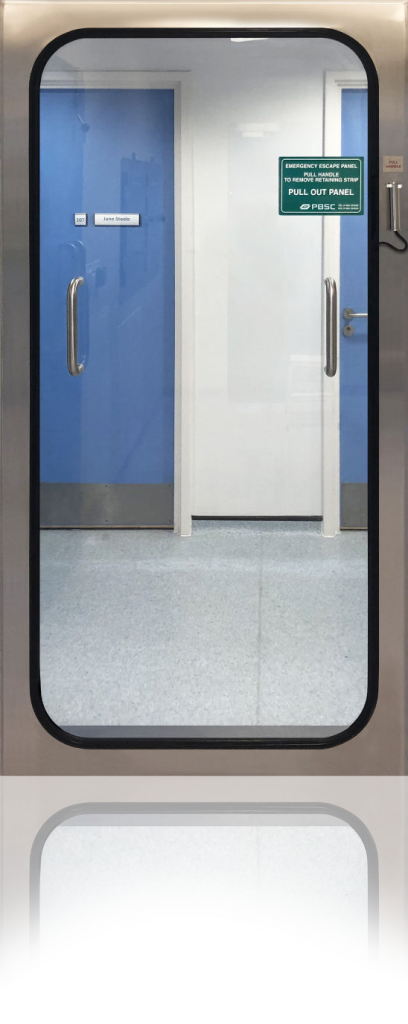

Emergency Escape Panel AR-BOP

PBSC’s cleanroom escape panel is also commonly known as a breakout panel, a service access panel, a cleanroom door, an escape door, BOP, or a kick out panel.

It provides a quick escape and safe exit from a cleanroom or containment-controlled environment. It is often used as a removable window that can be easily removed for equipment access routes during planned shutdowns.

• Made to suit finished wall thickness
• Flush wrap-around frame on both wall sides
• Welded and polished stainless-steel construction
• Custom engineering solutions available
• Stainless-steel assembly and pull handles
• Low leakage rates
• 304/316L stainless steel or powder-coated options
• Pull or push configurations
• Clear or opaque acrylic panels
• Escape capability from both sides

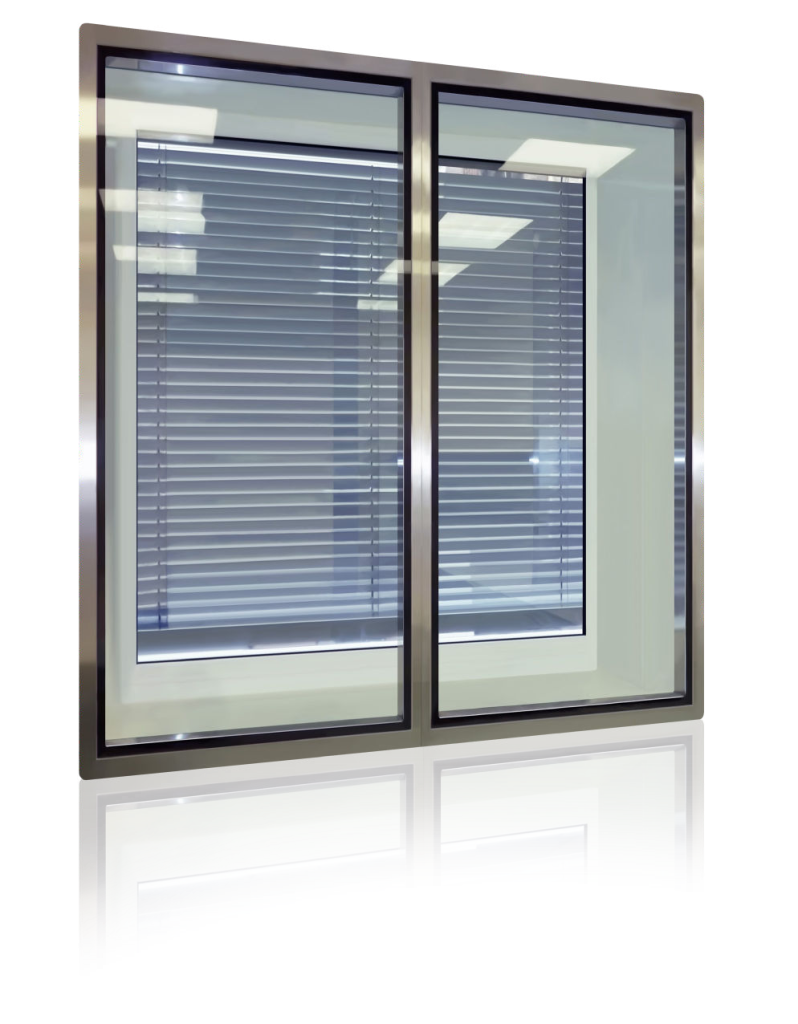

Secondary Glazed Vision Panel AR-Vs

PBSC’s secondary glazed cleanroom vision panels are designed to provide flush glazing to the inside of any facility where standard external windows are on the exterior of the building.

These panels ensure no visible fixings on either side, allowing for meticulous attention to detail and maintaining a clean, sterile environment.

Ideal for facilities where visibility is critical, these panels are an essential component of cleanroom technology, enhancing both functionality and aesthetics.

• Flush glazing
• Overlapping flanges to finish the opening
• Screen printed borders bonded to the toughened glass
• Made to fit into various sizes and depths to the external window
• No visible fixings

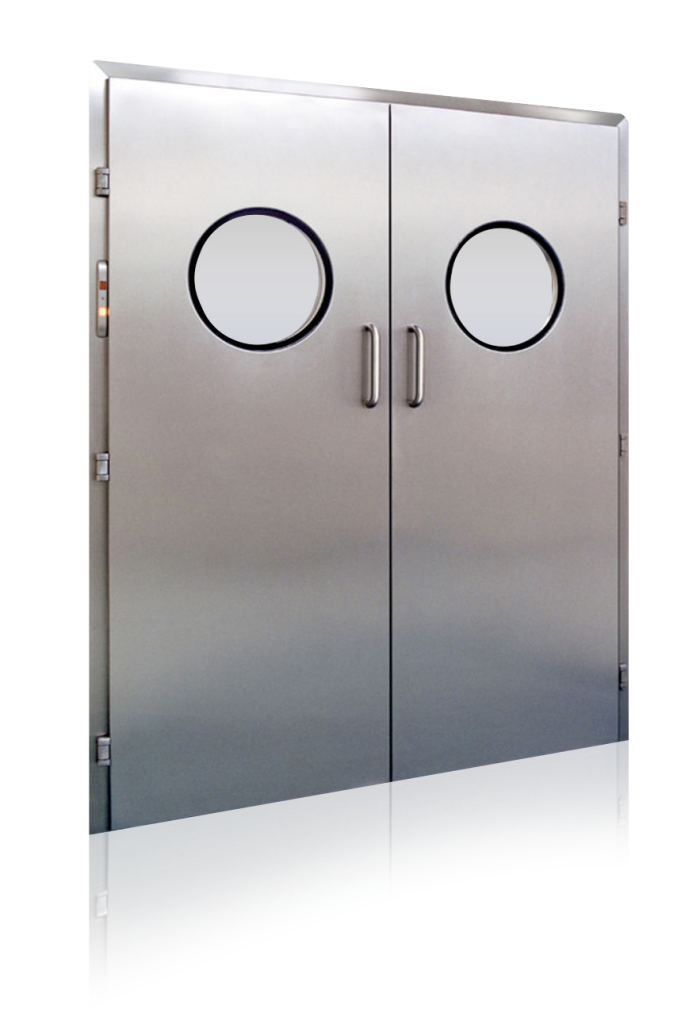

Steel Door Set AR-Ds

PBSC’s cleanroom steel door sets (also known as Hospital Doors, Cleanroom Doors, Laboratory Doors, NHS Doors, APR Doors and Healthcare Doors) are engineered to meet the highest standards of hygiene and functionality.

Making them an essential component in maintaining contamination control across various industries such as pharmaceutical, biotechnology, and electronics manufacturing.

As one of PBSC’s original door sets, specifically engineered for cleanroom environments, it has proven its enduring value through precision design, exceptional quality, and long-lasting durability.

• Sturdy 3-piece framework system
• Welded and polished frame construction
• Unique PBSC cast stainless steel hinge assembly
• Custom frame width for site-specific walls
• 1.6mm stainless steel leaf in 240 grit finish

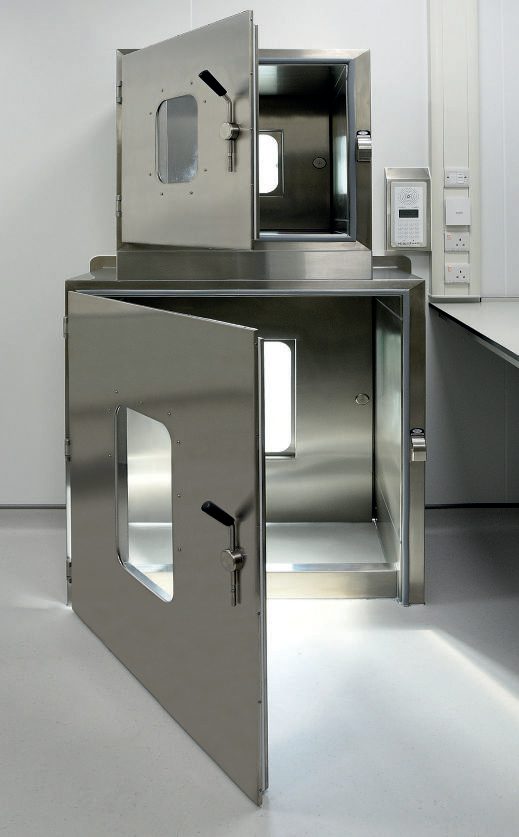

Fire Rated Pass Through Hatch AR-Hf/Tf

The fire rated pass through hatch from PBSC is a specialized hatch used to transfer materials between different areas in a facility while maintaining fire resistance and contamination control.

It is also known as a fire rated cleanroom pass through box, fire rated pass through window, fire rated chamber, fire rated box, or fire rated cleanroom hatch. This hatch is crucial in environments where fire safety is a priority, such as laboratories, cleanrooms, and industrial facilities.

When a pass through needs to be installed in a firewall, PBSC can provide a wall or floor mounted option with stainless steel door leaves featuring vision panels.

Tested to BS 476 part 22, with integrity certification from 60 to 90 minutes.

• Robust mechanical interlock system
• Solid stainless-steel hinge assemblies
• Easy clean surfaces
• Test certification to BS 476 part 22, up to 90 minutes integrity
• Wall or trolley mounted
• 30 minutes insulation properties
• Used in a broad range of applications
• Custom sizes

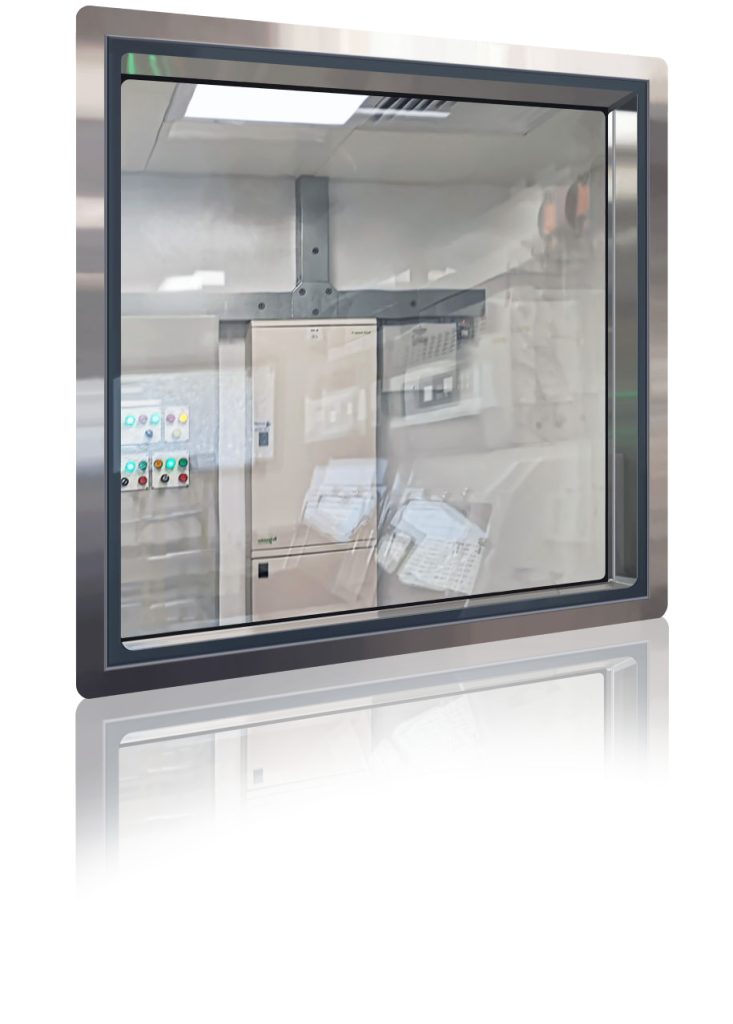

Fire Rated Vision Panel AR-Vf

PBSC’s fire rated vision panel, also known as a lab window, hospital window, and cleanroom observation panel, provides a flush-glazed finish with a polished stainless-steel architrave.

The clear fire glass is clamped between the two outer panes of toughened glass, providing a flush finish with no visible fixings to either side.

Providing up to 90 minutes of insulation and tested to BS 476 Part 22.

• Flush glazed vision panels to both sides
• Clear fire glass construction
• Overlapping flanges to both sides
• Screen printed borders bonded to glass
• Adaptable for various wall thickness

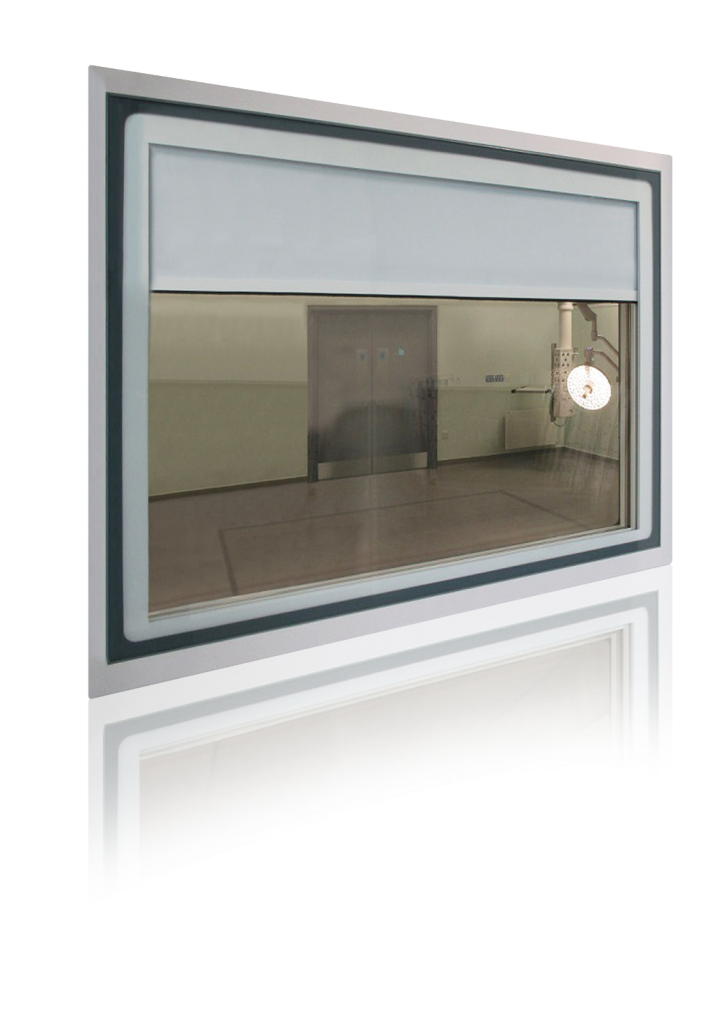

Lead Shielding Vision Panel AR-Vl

PBSC offers lead shielding vision panels designed for environments requiring radiation protection.

These panels provide a clear view while ensuring reduction from radiation exposure, making them ideal for use in medical and research facilities where radiation is present.

The design maintains the aesthetic and functional qualities of PBSC’s standard vision panels, with the added benefit of lead shielding to meet specific safety requirements.

In keeping with the clean and flush designs from PBSC, the lead shielding glazed screens have flush glazing in polished stainless-steel architraves and no visible fixings to either side. Providing up to 12mm lead equivalency and can be provided for different applications including code 5, code 6, code 7, etc.

• Flush glazed vision panels to both sides
• Fire rated version available
• Flanges to finish structural opening
• Screen printed borders
• Fits various wall thicknesses
• Up to 12mm lead equivalency
